For large goods to be transported

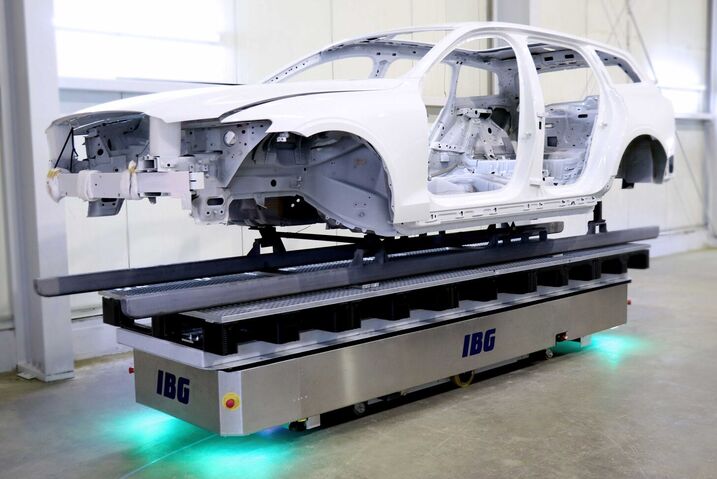

The "FC 100" automated guided vehicle system (AGV) is an advanced solution for transporting large goods. It has an integrated lifting system that makes it possible to pick up load carriers for heavy loads. The system is based on a combination of sensors, safety scanners and magnetic track scanners.
Length: 4,000 mm
Width: 1,000 mm
Height: 560 mm
Own weight: 600 kg
Rated payload: 2,000 kg
Operating time: 16 h
Charging time: 4 hours
Battery type: Lead Crystal
Speed: 0.8 m⁄s
Lifting height: 100 mm
Lifting/lowering speed: 5-10 mm/s
The FC 100's safety scanners are able to detect the surroundings, recognise obstacles and move around safely. The FC 100's magnetic track scanner enables the system to follow a magnetic track used for navigation. This guarantees precise control of the vehicle and ensures safe and reliable transport of the load. An RFID sensor reads the driving commands from RFID tags.
The FC 100 automated guided vehicle system is a solution that ensures high reliability and safety through the use of advanced technologies such as sensors, safety scanners, magnetic track scanners and RFID sensors. It is the perfect solution for transporting large goods and offers high efficiency and productivity.
